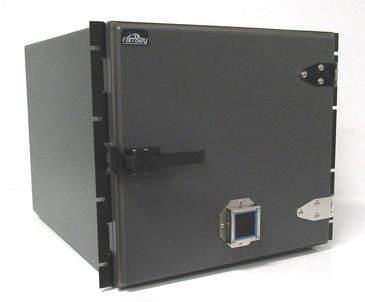

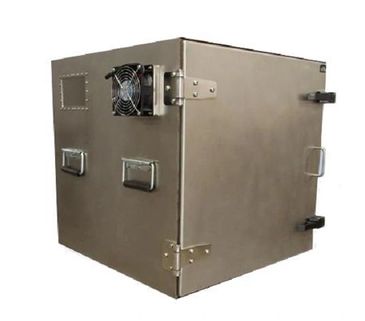

In 1997 Ramsey Electronics® took technicians out of large expensive shielded screen rooms and put RF shielding into the palms of their hands. Our patented portable benchtop RF Shielded Test Enclosure was a revolution in RF testing, providing unprecedented visual and hands-on access to equipment in a tightly controlled RF-free test environment. With tens of thousands of Ramsey Electronics® RF Shielded Test Enclosures now in service worldwide, our STE designs and technologies have become the industry standard for efficient and cost effective RF isolated device testing.
Today, with over 30 standard models to choose from (and thousands of available custom configurations) that legacy continues but our commitment to excellence in RF shielding doesn't stop with our existing enclosures. Rapid changes in wireless technologies, frequency bands, and speed protocols make old standards obsolete every day, but at Ramsey Electronics® we want our customers to be prepared for the future. Models and I/O devices designed around tomorrow's standards are available now, with new innovations constantly under development.
From wireless chipset R&D, to global digital Forensics, to RF finished goods performance testing, we have RF Shielded Test Enclosures and I/O devices to meet your needs without breaking the bank. And if your application requires a custom size or additional functionality, we have you covered there also. From one-off engineering specials to large custom production runs, Ramsey Electronics® has designed and delivered hundreds of custom units at record speeds - and well within customer budgets.
In addition to our RF Test Enclosures, we also offer the latest I/O devices to keep your RF test environment well isolated. Whether your application is a Ramsey RF Test Enclosure, third party test unit, or RF screen room, our high quality I/O devices and interfaces provide the isolation you need for the RF technologies of the present - while making sure you are ready for the future.
If you are looking for our popular COM3010 RF Communications Service Monitor, check it out. The service monitor engineered and designed to provide highly accurate measurement and monitoring of communications equipment from 100kHz to 1.0GHz with 0.1ppm accuracy. Full duplex design enables independent and separate measurement and testing of transmitter and receiver circuits simultaneously making it the ideal service monitor for the radio technology of today...and tomorrow!
Watch WABC's Report featuring "The Ramsey Box"!
High Performance I/O Interfaces for 2017
UNIVERSAL USB I/O CONNECTOR, UP TO 10Gbit/s!
The STEUSB3AA is our latest 100% shielded and capable USB A-A I/O connector that passes all USB standards all the way up to USB3.1Gen-1 at 10Gbit/s Superspeed+ Its single hole RF gasketed mounting makes it easy to install, and is fully compatible with our USB filtered interfaces for field upgrades and downgrades.
UNIVERSAL ETHERNET RJ45 I/O CONNECTOR, UP TO 10GBASE-T!
The STERJ4510G is our latest 100% shielded and capable Ethernet RJ45 female to female I/O connector that passes all Ethernet and data standards all the way up to 10GbE Ethernet! Its single hole RF gasketed mounting makes it easy to install, and is fully compatible with our Ethernet and PoE Ethernet interfaces for field upgrades and downgrades.
HDMI SHIELDED I/O CONNECTOR!
The STEHDMI2 is our latest 100% shielded HDMI A to A receptacle that is transparent to all 19 pins for compatibility up to V2.1. It’s single hole RF gasketed mounting makes it easy to install and utilizes the same mounting form factors making it easy to upgrade to our digital >90 dB RF isolated HDMI interface as needed.

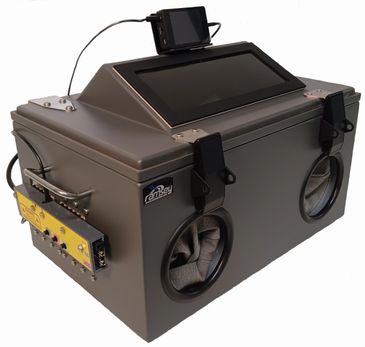

RF ISOLATED WINDOW OPTION PROVIDES -85dB ISOLATION!
Our next generation RF isolated viewing window provides an unprecedented 85dB RF isolation across your typical reject bands. Combined with our latest next generation hands-on silver mesh gloves gives you a frequent total effective RF isolation greater than 100dB down!
USB3.1 SUPERSPEED USB WITH AUTO DCP CHARGING, >90dB ISOLATION!
Starting with our digital HDMI 4K video interface design, the STEUSB311 provides >90dB RF Isolation from 500MHz to 8GHz. Even covers the new T-Mobile 622Mhz Band-71 LTE service! Also auto-detects and indicates DCP high current charging mode when the device calls for it. Mounts in our same single 1” hole mount as our USB2.0 units for field upgrade purposes. Includes universal power supply and two double shielded USB3 A/B cables, and mounting hardware.
4K HIGH RESOLUTION VIDEO, >85dB ISOLATION!
The impossible RF Test Enclosure I/O is now made possible by Ramsey Electronics®! Our STEHR140 interface provides a very compact HDMI I/O option that passes 4K video up to 2160p while maintain an RF isolation greater than 85dB from the low 600MHz bands all the way up to 8GHz! Like our USB and Ethernet interfaces, the 4K video interface maintains 100% shielding with its easy to install single-hole mount.
10 GIGABIT ETHERNET WITH PoE, >90dB ISOLATION!
Yes, we said 10 Gigabit! Our brand new STE10GBE Ethernet interface provides 10GBASE-T copper Ethernet using standard CAT6A or CAT7 cables. The interface is also backwards compatible with 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-T, and 10BASE-T, and provides an RF isolation >90dB at all speeds. And just like our Gigabit interface it auto-detects and passes 802.3af/at PoE at all speeds! Our single-hole mount maintains 100% shielding and makes mounting simple.
GIGABIT ETHERNET OR 8 DEDICATED DATA LINES, >90Db ISOLATION!
Brother to the STEGBE4590 Gigabit PoE Interface, we removed the Ethernet PoE detection functionality to provide 8 transparent lines for not only Gigabit Ethernet, but for other data formats that conflict with 802.3af/at mode detection yet still passes PoE power! Great for custom I/O applications up to 250 MHz per line! Physically interchangeable with the STEGBE4590.
10 GIGABIT ETHERNET OR 8 DEDICATED DATA LINES, >90Db ISOLATION!
Brother to the STE10GBE 10GbE PoE Interface, we removed the Ethernet PoE detection functionality to provide 8 transparent lines for not only 10GbE Ethernet, but for other data formats that conflict with 802.3af/at mode detection yet still passes PoE power! Great for custom I/O applications up to 450 MHz per line (2,500Mbps)! Physically interchangeable with the STE10GBE as well as our Gigabit Interfaces.
GIGABIT PoE ETHERNET, >90dB ISOLATION!
Our extremely popular STEGBE4590 Gigabit interface has been ruggedized for 2016 by milling solid aluminum port protectors around both the internal and external Ethernet connector to handle production line cable stresses. Provides >90dB RF isolation from 700Mhz to 8GHz. Features our popular dual mode 802.3af/at PoE auto-detect and pass-through. Single-hole mounting maintains 100% shielding and makes mounting simple in any application.

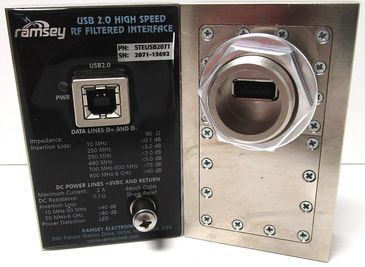

USB2.0 HIGH SPEED, AUTO POWER DETECT, >90dB ISOLATION!
Like our Gigabit interface, our popular STEUSB2071 USB2.0 high speed interface has also been ruggedized for extreme production line cable stresses on both sides of the unit. The interface provides >80dB RF isolation from 700MHz to 8GHz and also provides auto USB power detect. Like our other interfaces the STEUSB2071 also features a single-hole mount that maintains 100% shielding.
IEC REGULATORY APPROVED AC POWER INTERFACE
The STEIEC10250 Universal IEC Power Module is the latest interface designed to be your fully compliant regulatory certified RF Test Enclosure power interface while providing >90dB RF isolation. Features IEC standardized input and output connections making it compatible with virtually any country power standard. Regulatory certifications include EU CE, FCC, and Industry Canada.
UNIVERSAL 20-LINE DC POWER, AUDIO, AND DATA INTERFACE
The STEDC2010 is the low voltage brother to our AC Power Interface. Provides a staggering 20 lines of DC or signals up to 8MHz while providing >90dB of RF isolation! Perfect for multiple DC power feeds, sense and feedback circuits, audio, video, switching, alarm, and RS232/RS422 speed data. All connections made by simple plug-in Euroblock connectors and plugs.
