Rf Shielded Test Enclosure

STE3600M

(NO OPTIONS INCLUDED, Fully customizable to your requirements )

$1,895.00

RF SHIELDED TEST ENCLOSURE

The STE3600M is a blank enclosure ready to be customized to match your specific RF testing requirements. Our Engineering team is available to assist you to make sure your custom enclosure is designed to meet your unique RF testing requirements. This enclosure is incorporate with a 60mm passive ventilation system with optional 12 volt DC, 115 VAC, or 230VAC fans available. As with all of our enclosures, your custom I/O configuration is brought out to a precision machined I/O panel, giving you off the shelf delivery of your custom order.

  • Designed for a wide variety of RF testing functions determined by user customization.
  • Perfect for Wi-Fi 4, 5, 6, 6E (802.11a/b/g/n/ac/ax)
  • Wireless device testing
  • Bluetooth, RFID, 3G, 4G, 5G testing
  • Totally customizable with a wide variety of I/O options available
Isolation of an enclosure may vary depending on I/O or options selected in final configuration:
  • >95dB At 2.4GHz
  • >90dB At 5.8GHz

Key Features

Included Interface Options

None

Included Power

None

Included Ventilation

60MM Honeycomb Vents

I/O Plates Included

1

Loading Style

TOP

Warranty

1 YEAR

Category

BENCH TOP

Absorber/foam

3/4" INSERTION LOSS

External Dimensions

17.0''(W) X 25.5''(D) X 13.1''(H)

Internal Dimensions

15.2''(W) X 22.2''(D) X 10.7''(H)

Shipping Dimensions

33"(W) X 24"(D) X 18"(H)

Approx. Shipping Weight

40lbs

Shielding Effectiveness (dB)

Isolation At 2.4GHz

>95dB

Isolation At 5.8GHz

>90dB

Features:

  • Designed for WLAN testing

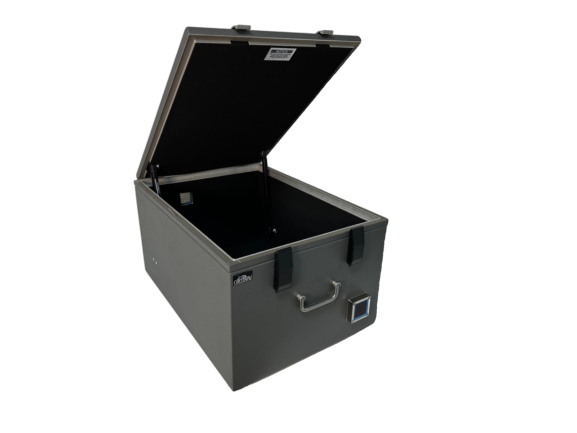

  • Top loading swing away door
  • Dual ventilation or fan forced cooling
  • Exclusive double lip RF tight gasket

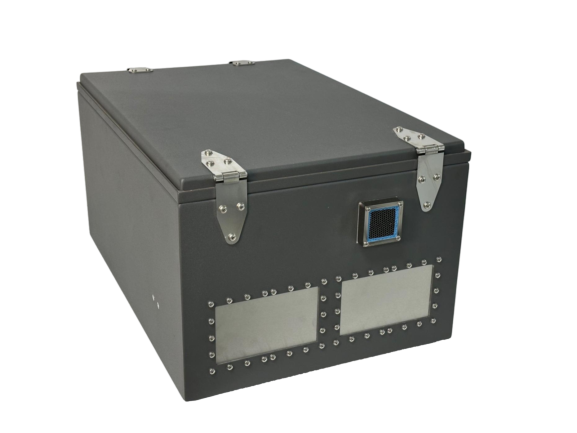

  • Universal I/O connector interface plate
  • Insertion Loss RF absorbent foam liner Standard
  • Reflection Loss solutions available
  • Optional security locking latch available

I/O Connectors:

  • None provided standard, customized to your specific requirements.
  • See options for off the shelf connectors/interfaces available.
  • Coaxial connectors: SMA, BNC, TNC, N, N to SMA, etc..
  • Digital interfaces: USB, Ethernet, Video, Serial, Audio, Fiber, etc..
  • Power filter interface: AC and DC
  • Power Strip Options: US, UK, European, France, Swiss, Italy, Israel, India, China, Australia, Multi Country Config, etc…
  • Custom connection options can be sourced through our Engineering Team
