STE4470M

(NO OPTIONS INCLUDED, Fully customizable to your requirements )

$2,695.00

19" RACK MOUNTABLE RF SHIELDED TEST ENCLOSURE

The STE4470M is a blank enclosure ready to be customized to match your specific RF testing requirements. Our Engineering team is available to assist you to make sure your custom enclosure is designed to meet your unique RF testing requirements. The STE4470M can be used as a standalone enclosure or use the included brackets for mounting into a standard 19 inch rack system. This enclosure also incorporates a 120mm passive ventilation system standard with optional 12 volt DC, 115 VAC, or 230VAC fans available. As with all of our enclosures, your custom I/O configuration is brought out to a precision machined I/O panel, giving you off the shelf delivery of your custom order.

  • Designed for a wide variety of RF testing functions determined by user customization.
  • Perfect for Wi-Fi 4, 5, 6, 6E (802.11a/b/g/n/ac/ax)
  • Wireless device testing
  • Bluetooth, RFID, 3G, 4G, 5G testing
  • Totally customizable with a wide variety of I/O options available
Isolation of an enclosure may vary depending on I/O or options selected in final configuration:
  • >95dB At 2.4GHz
  • >90dB At 5.8GHz
    STE4470M CUSTOMER DIMENSIONAL DRWG

Key Features

Included Interface Options

None

Included Power

None

Included Ventilation

120MM Honeycomb Vents

I/O Plates Included

2

Loading Style

FRONT

Warranty

1 YEAR

Category

RACK MOUNTED

Rack Units

12RU

Absorber/foam

3/4" INSERTION LOSS

External Dimensions

19.0"(W) X 25.7"(D) X 21.1"(H)

Internal Dimensions

15.3"(W) X 21.9"(D) X 18.9"(H)

Shipping Requirements

Must Ship On A Pallet

Approx. Shipping Weight

100lbs

Shielding Effectiveness (dB)

Isolation At 2.4GHz

>95dB

Isolation At 5.8GHz

>90dB

Features:

  • Designed for WLAN testing
  • Included brackets for mounting into a standard 19 inch rack system

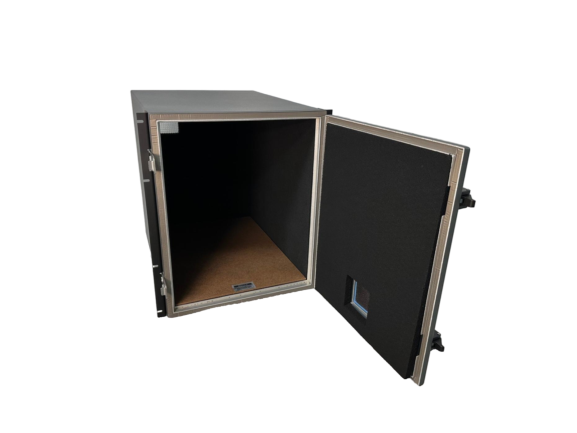

  • Front loading swing away door
  • Dual ventilation standard or fan forced cooling optional.
  • Exclusive double lip RF tight gasket

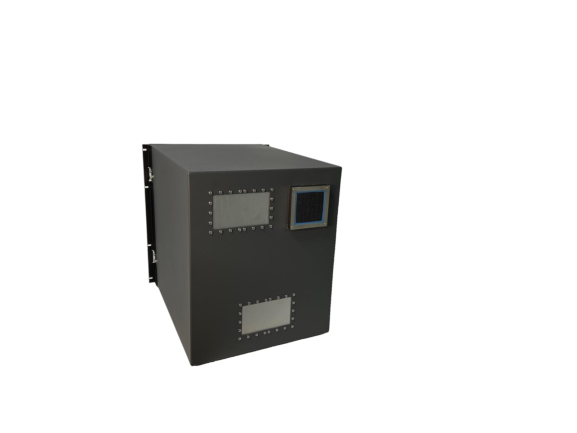

  • Universal I/O connector interface plate
  • Insertion Loss RF absorbent foam liner Standard
  • Reflection Loss solutions available
  • Optional security locking latch available

I/O Connectors:

  • None provided standard, customized to your specific requirements.
  • See options for off the shelf connectors/interfaces available.
  • Coaxial connectors: SMA, BNC, TNC, N, N to SMA, etc.
  • Digital interfaces: USB, Ethernet, Video, Serial, Audio, Fiber, etc..
  • Power filter interface: AC and DC
  • Power Strip Options: US, UK, European, France, Swiss, Italy, Israel, India, China, Australia, Multi Country Config, etc…
  • Custom connection options can be sourced through our Engineering Team.
