STEBJ4C

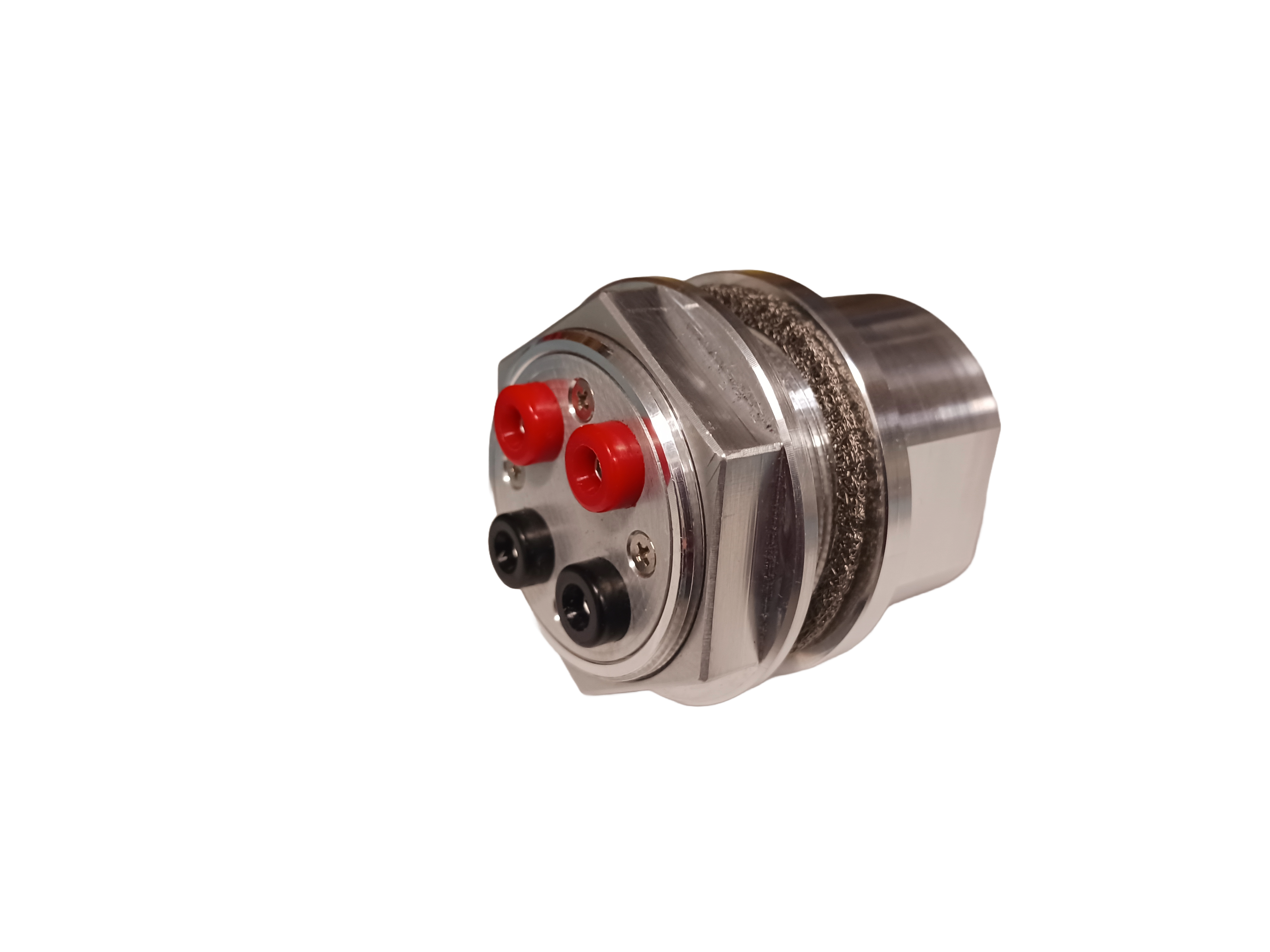

Overview The STEBJ4C is a four-conductor low-pass filtered Banana Jack interface. The interface has two pairs of red and black jacks. Each pair of jacks is spaced a 0.75 inches (19.05mm), which is standard spacing for Dual Banana Plugs. An optional Banana Plug solderless connector is available for easy connection to bare wires. Applications The primary application is for use in RF Shielded Test Enclosures. The interface will also work well in RF Screen Room applications, or anywhere you need to pass low voltage dc power, small AC signals, control signals, or low speed data. Features Passive Filtering. Two Pairs of Banana Jacks. Banana Jacks spaced for Dual Banana Plug use. Single Flange Nut for mounting. RF Gasket Washers to provide high quality RF bond.
